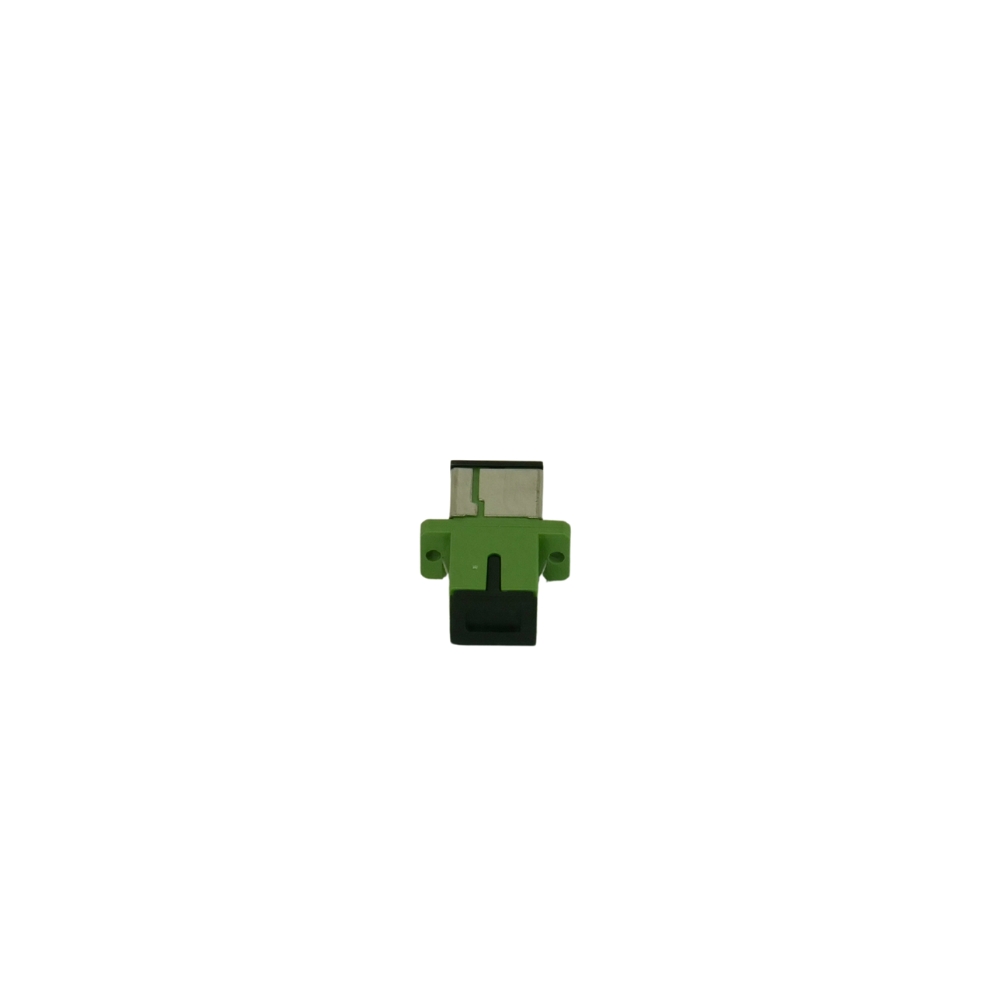

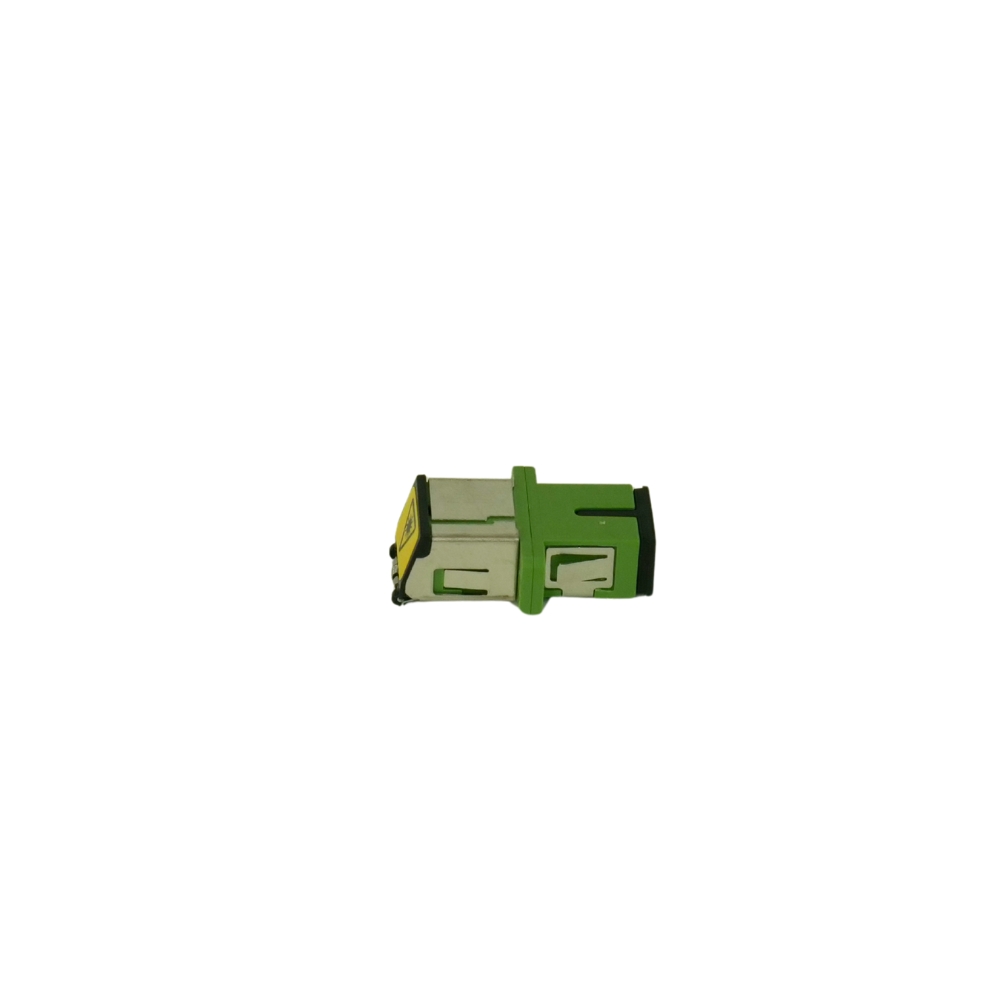

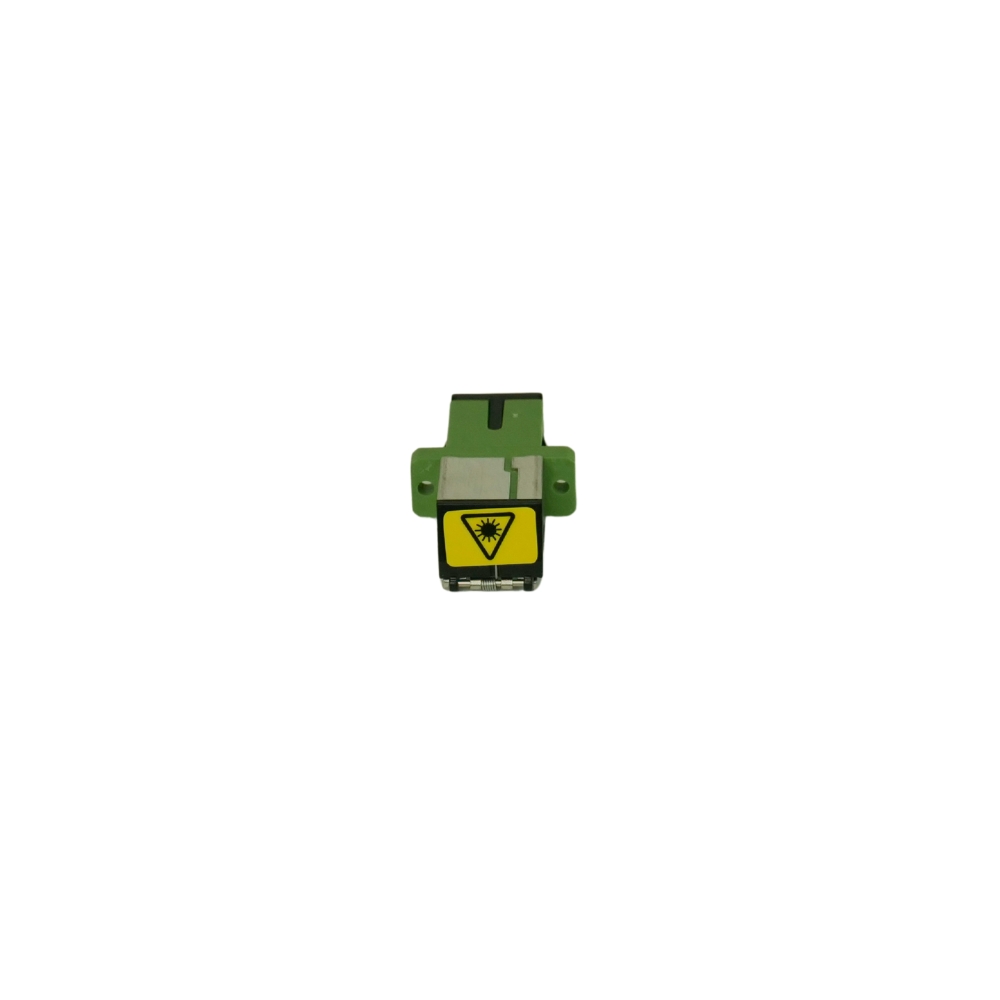

GTLAN’ s simplex SC-APC adapter enables efficient and secure interconnection of single-mode optical fibers in FTTH (Fiber To The Home) installations, terminal boxes and patch panels. Its compact simplex design is intended for point-to-point connections, ensuring precise alignment and low insertion loss.
Constructed of durable polycarbonate with zirconia ceramic ferrule, this adapter incorporates a spring-loaded dust cap for added protection and a stable flange mount with screw option for easy integration into multiple frame types.
Outstanding technical characteristics:
-
Adapter type: SC-APC simplex
-
Fiber type: Single-mode 9/125 µm
-
Connection: Female-Female
-
Color: Green
-
Body material: Polycarbonate
-
Splint: Zirconia ceramic
-
Cover: Dust cap with spring
-
Fastening system: Flange (optional screw)
-
Durability: Up to 1000 connections
-
Temperature range: -40 °C to 80 °C
-
Certifications: CE and RoHS
-
Standards: UL94-V0, IEC 61754-4, Telcordia GR-326
Ideal applications:
-
FTTH Networks
-
Optical distribution panels
-
SC-APC single-mode fiber links
-
Telecommunications access systems
This GTLAN adapter offers a reliable, secure solution aligned with the requirements of the most advanced optical environments.
