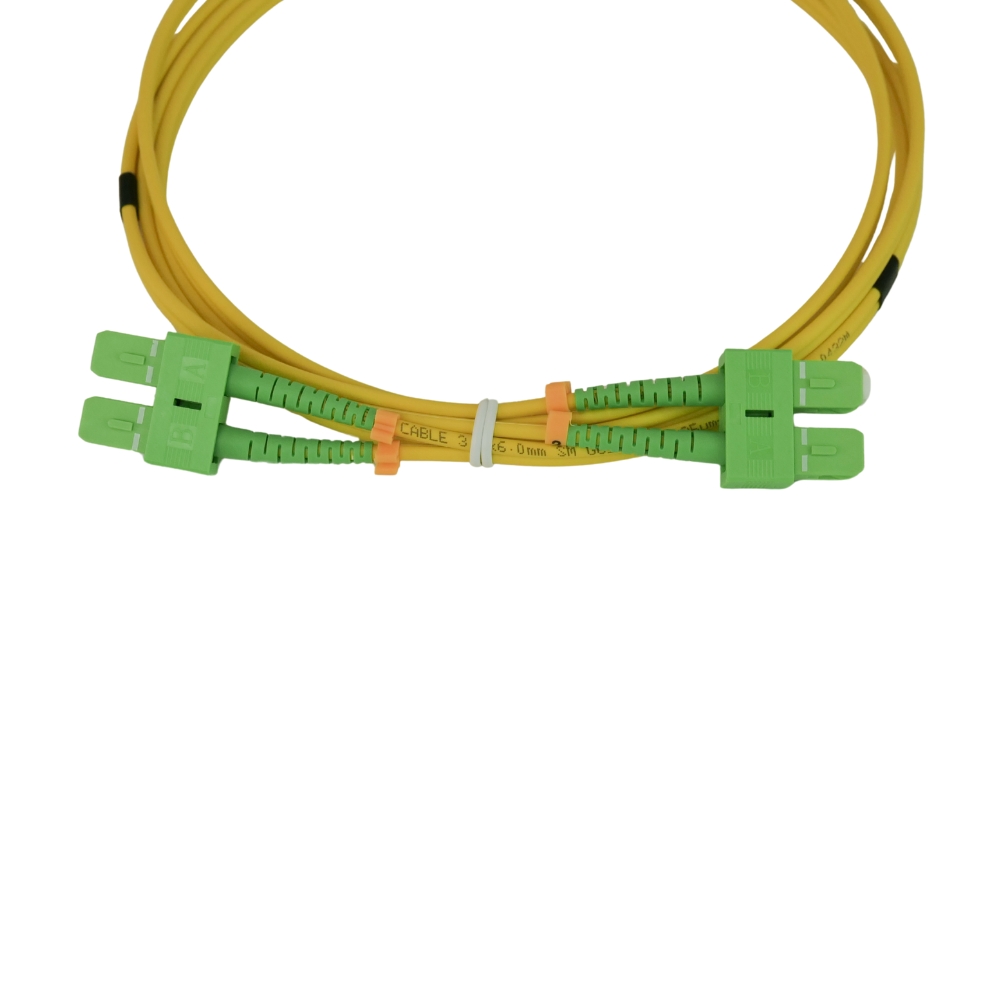

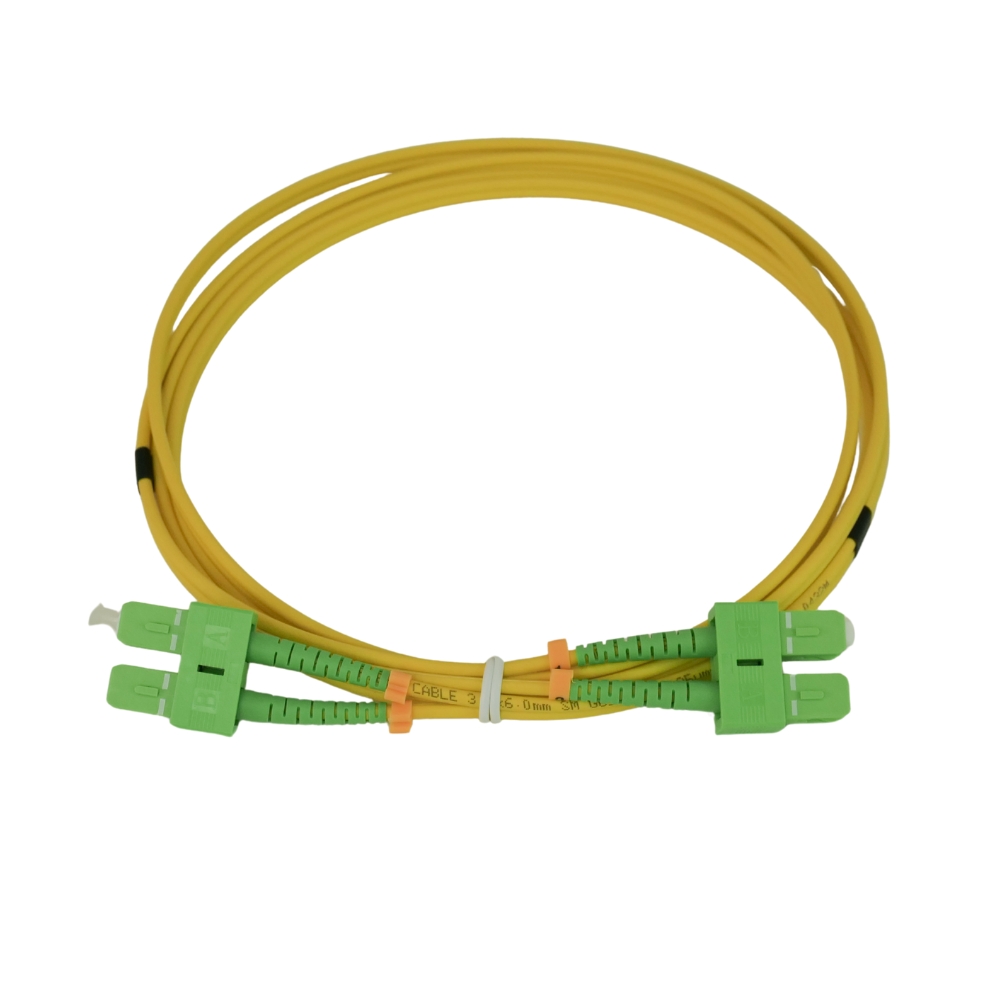

GTLAN’ s SC-APC / SC-APC singlemode fiber optic patch cord is designed for FTTH (Fiber To The Home) applications, passive optical networks and high-performance connections in telecommunications infrastructures. With 9/125 µm singlemode fiber, it offers stable signal transmission with minimal attenuation over long distances.
Thanks to its yellow LSZH (Low Smoke Zero Halogen) housing and duplex design, it ensures safety, flexibility and durability in residential, business and industrial installations. Its SC-APC termination provides low return loss and high optical reliability.
Outstanding technical characteristics:
-
Fiber type: Single-mode 9/125 µm
-
Connectors: SC-APC / SC-APC
-
Cable length: 2 meters
-
Hose type: Duplex
-
Casing: LSZH (yellow color)
-
Outside diameter: 3 mm
-
Splint material: Zirconia ceramic
-
Minimum bending radius: 10 mm
-
Operating temperature: -20 °C to 70 °C
-
Wavelengths: 1310 / 1550 nm
-
Durability: Up to 500 connections
-
Certifications: CE and RoHS
-
Standards: IEC 60793, IEC 61754-4, Telcordia GR-326 and GR-409, IEC 60332, IEC 60754, IEC 61034
Ideal applications:
-
FTTH Installations
-
Optical access networks
-
Single-mode telecommunications systems
-
Connections between OLT and ONT
Rely on GTLAN’ s professional quality for your fiber optic projects: efficient, secure solutions adapted to the most demanding industry standards.
