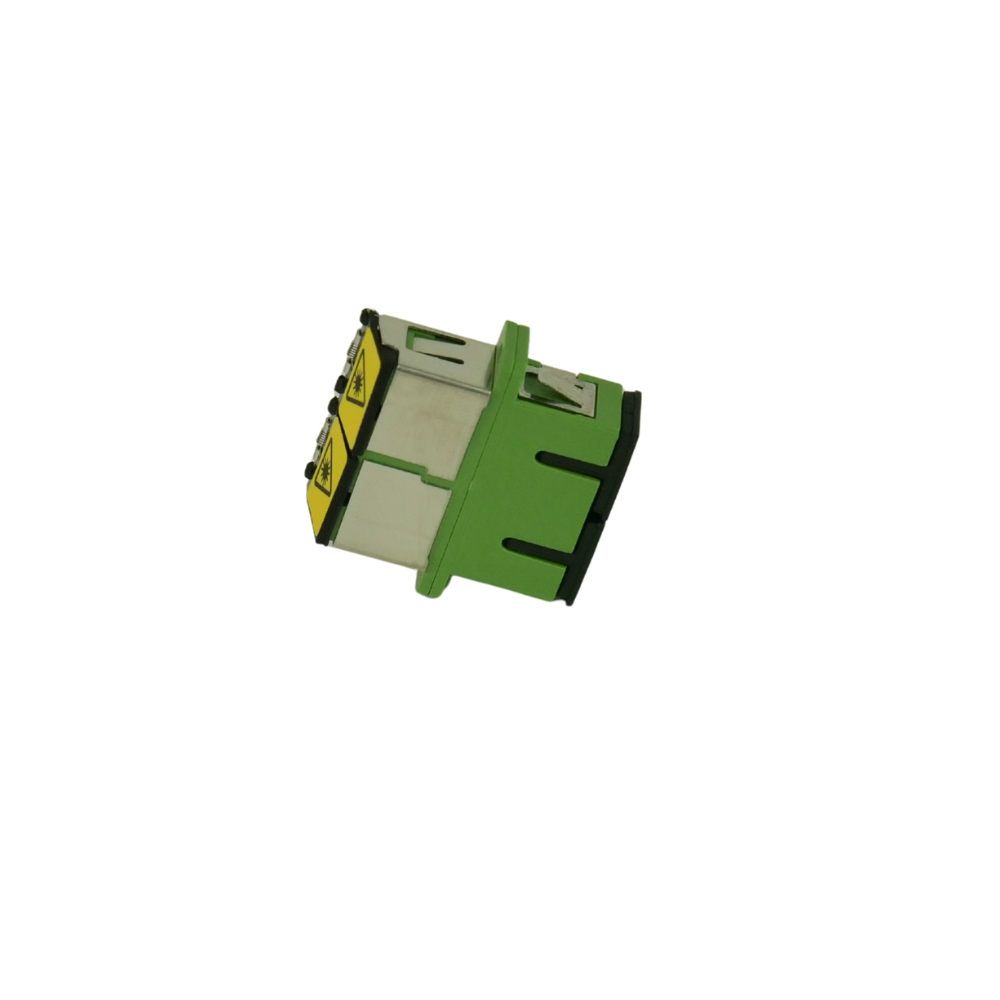

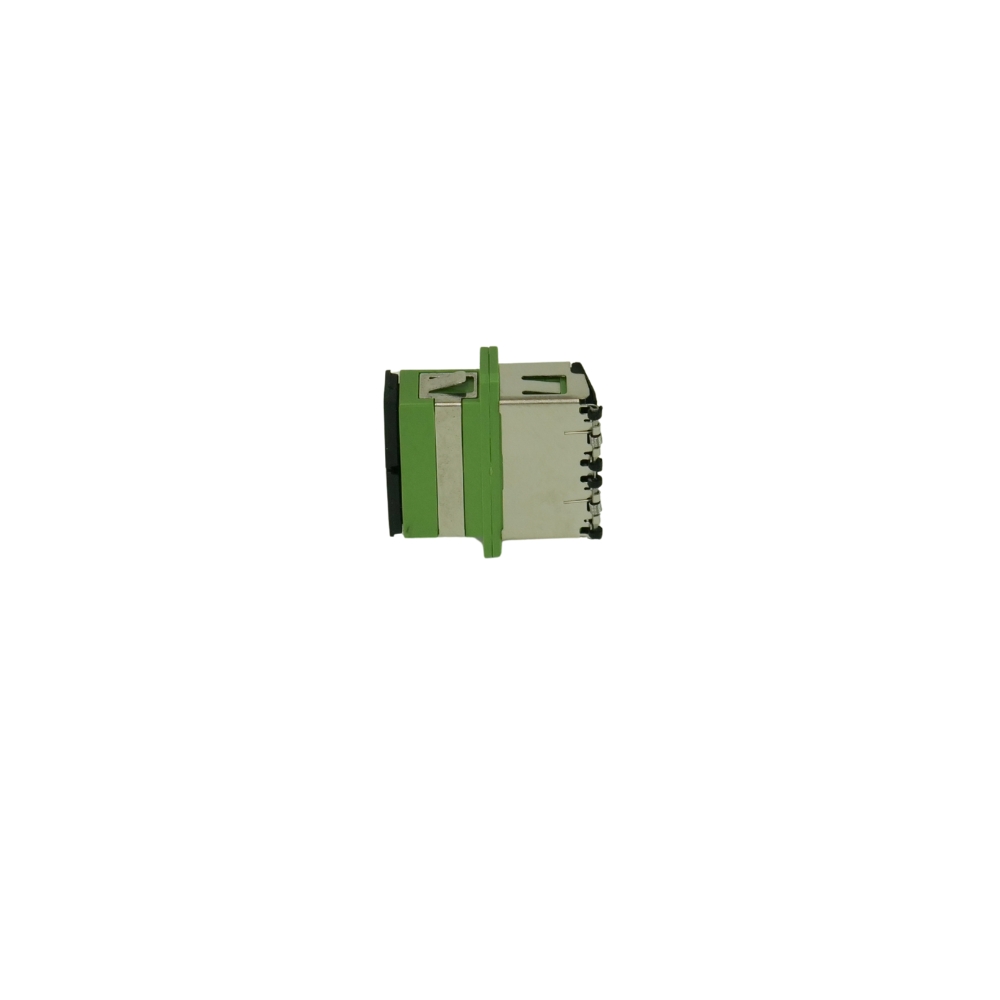

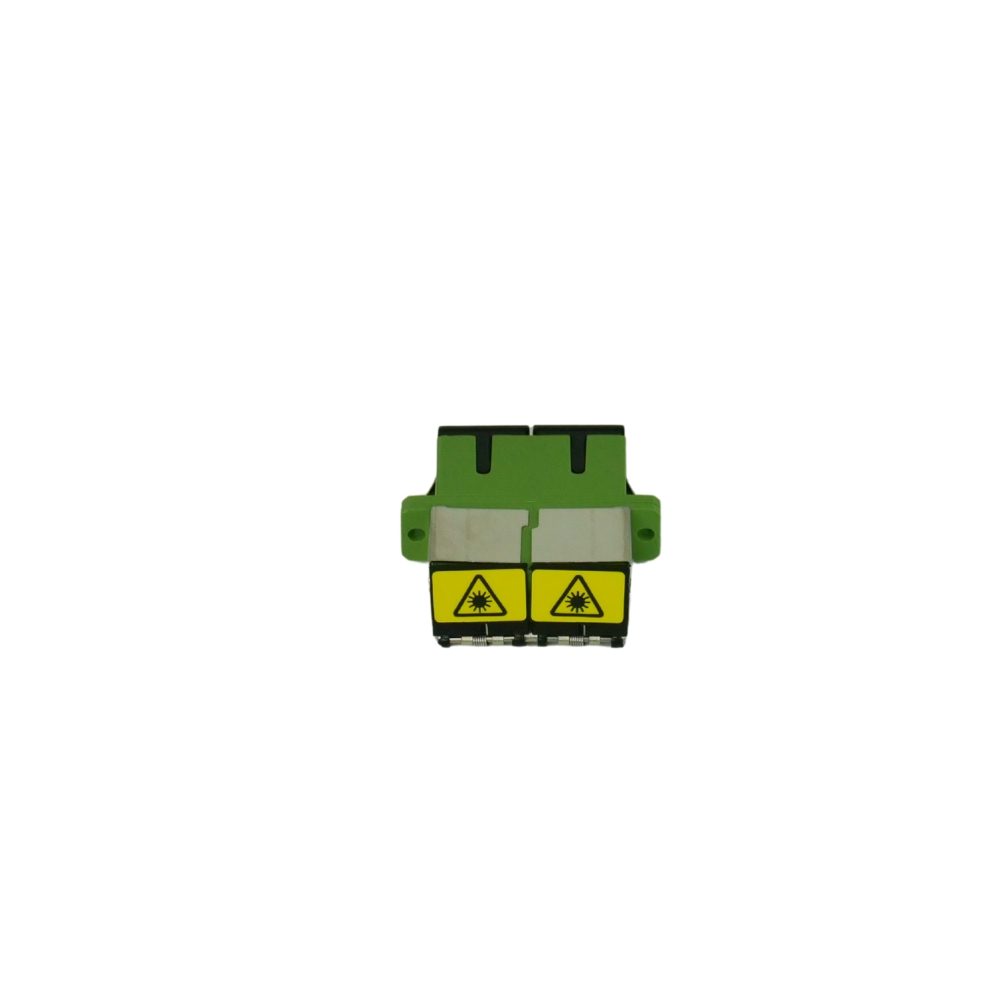

GTLAN’ s SC-APC duplex adapter is designed to provide a stable, secure and high-performance connection between 9/125 µm single-mode optical fibers in FTTH (Fiber To The Home) applications, patch panels, CTOs and terminal boxes.
Made of rugged polycarbonate and equipped with zirconia ceramic ferrules, it ensures precise alignment and minimal signal loss. Its spring-loaded cover protects the optical interfaces from dust and damage when not in use, enhancing durability and long-term performance.
Outstanding technical characteristics:
-
Type: SC-APC duplex
-
Connection: Female-Female
-
Fiber type: Single-mode 9/125 µm
-
Color: Green
-
Body: Polycarbonate
-
Splint: Zirconia ceramic
-
Dust cap: Spring loaded
-
Fastening: Flange (optional screw)
-
Temples: Metal
-
Durability: Up to 1000 connections
-
Temperature range: -40 °C to 80 °C
-
Certifications: CE and RoHS
-
Standards: UL94-V0, IEC 61754-4, Telcordia GR-326
Ideal applications:
-
FTTH Installations
-
Optical networks in residential and industrial buildings
-
Distribution panels and junction boxes
-
SC-APC fiber links in telecommunications
This GTLAN adapter offers reliability, optical precision and compatibility with the most demanding network environments.
