F.O. wall splitter, 24 metal adapters

Fiber optic wall splitter with capacity for 24 SC, LC DX or MPO-SC adapters. Made of high quality SPPC steel, with key lock, 2 trays and cable organizer. Ideal for professional telecommunications installations.
⇩ Technical Data Sheet

The Gtlan 35GTRM24SC Fiber Optic Wall Splitter is a robust and efficient solution for telecommunications installations that require orderly and secure cable management. Designed to accommodate up to 24 adapters (SC simplex, LC duplex or MPO-SC), it features a cold-rolled SPPC steel structure, ensuring durability and strength.

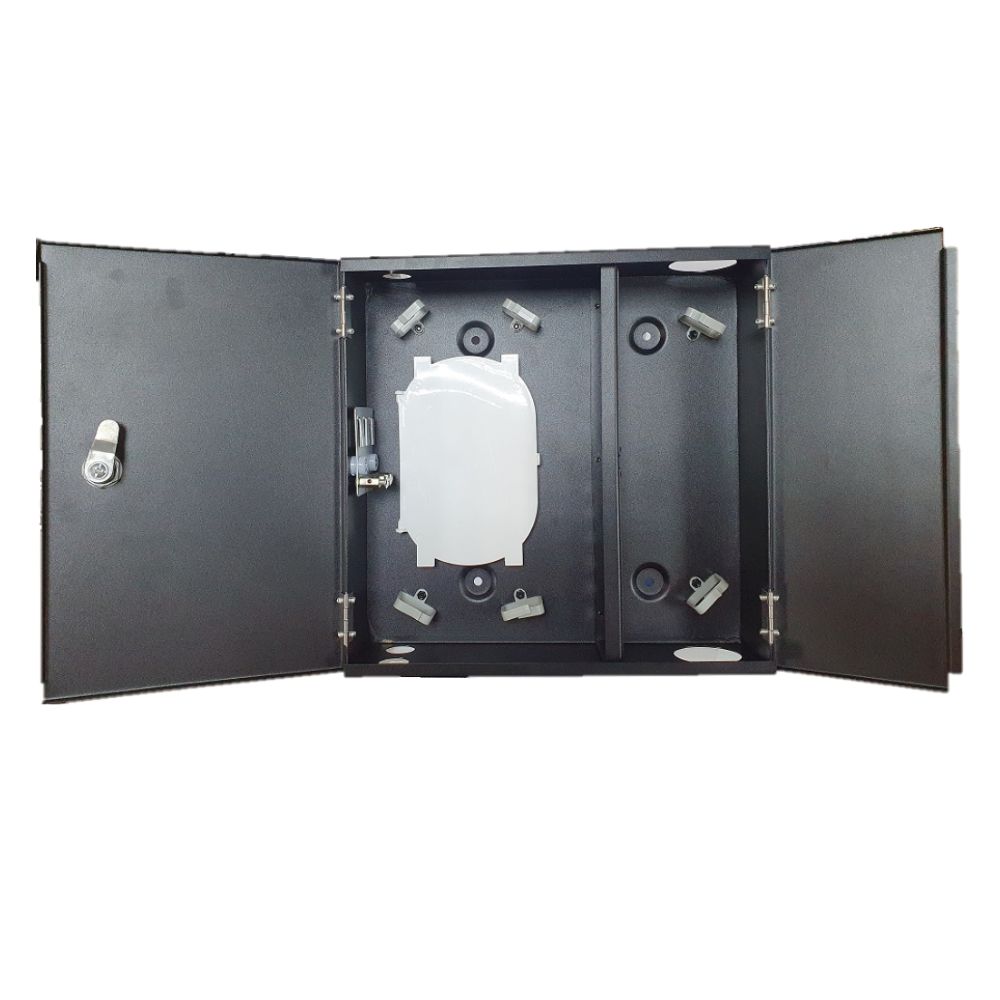

Two independent lockable compartments provide additional protection for both the fusions and the patch panel. It incorporates 4 accesses for power cables and 2 for termination cables, compatible with cable glands, which facilitates a flexible and safe installation.

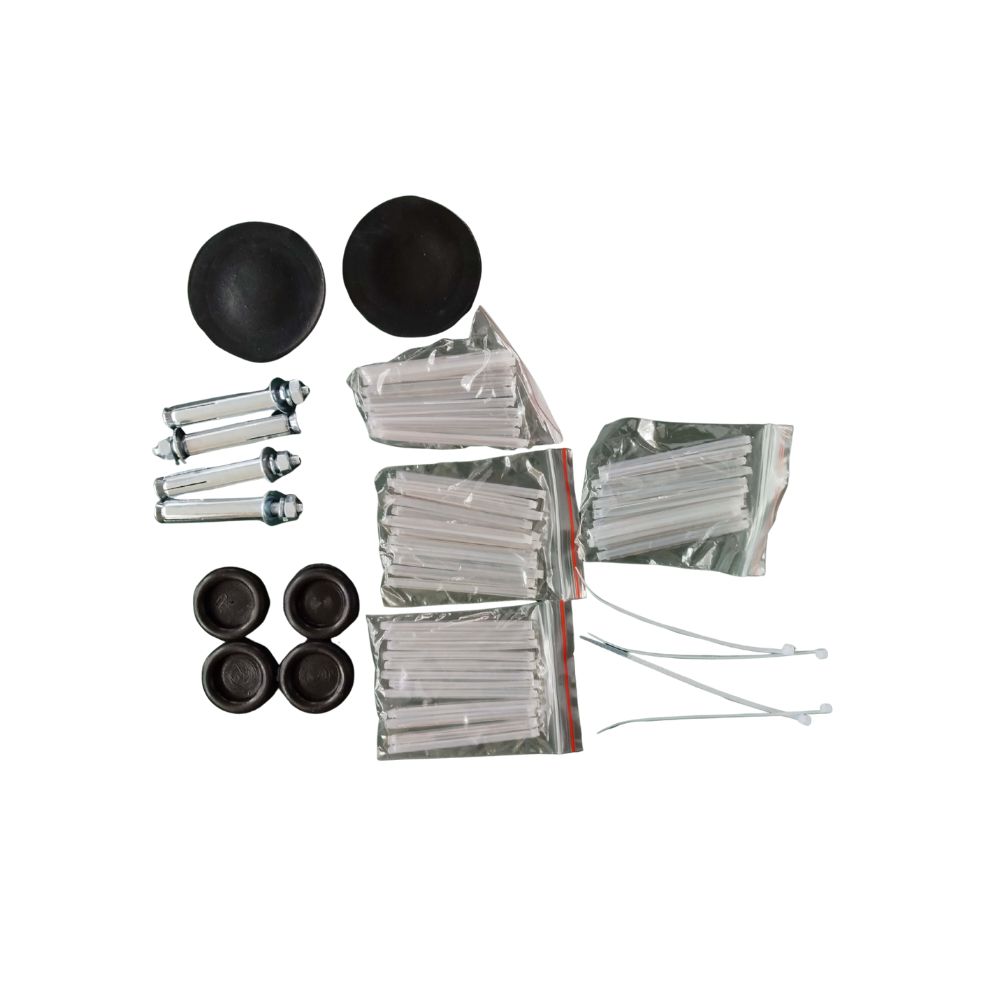

It includes complete accessories: hardware, dust seals, flanges and heat-shrinkable protectors for fusions. Complies with international standards such as IEC and RoHS, and is available in black RAL 9005.

Ideal for telecommunications networks in enterprise environments, data centers or technical installations that require a professional and orderly solution.

EAN Code

8435481000843

Fabricante

Gtlan Telecommunications Solutions

Color del producto

Black RAL 9005

Material

High-quality cold rolled SPPC steel

Embalaje

Unitary

CE

YES

RoHs

YES

Tipo cerradura

With key

Bandejas

2

Tipo adaptador

LC DX, MPO-SC, SC

Nº Adaptadores

24

Organizador de cables

6

Especificaciones

Opening by means of two independent doors for the protection of the fusions. Compatible with simple adapters.

Estándares

IEC 60068-2-2, IEC 61300-2-1, IEC 61300-2-4, IEC 61300-2-5, IEC 61300-2-7, IEC 61300-2-10, IEC 60825-1

Medidas sin embalaje

85x305x305 mm

Peso sin embalaje

3.9 kg
