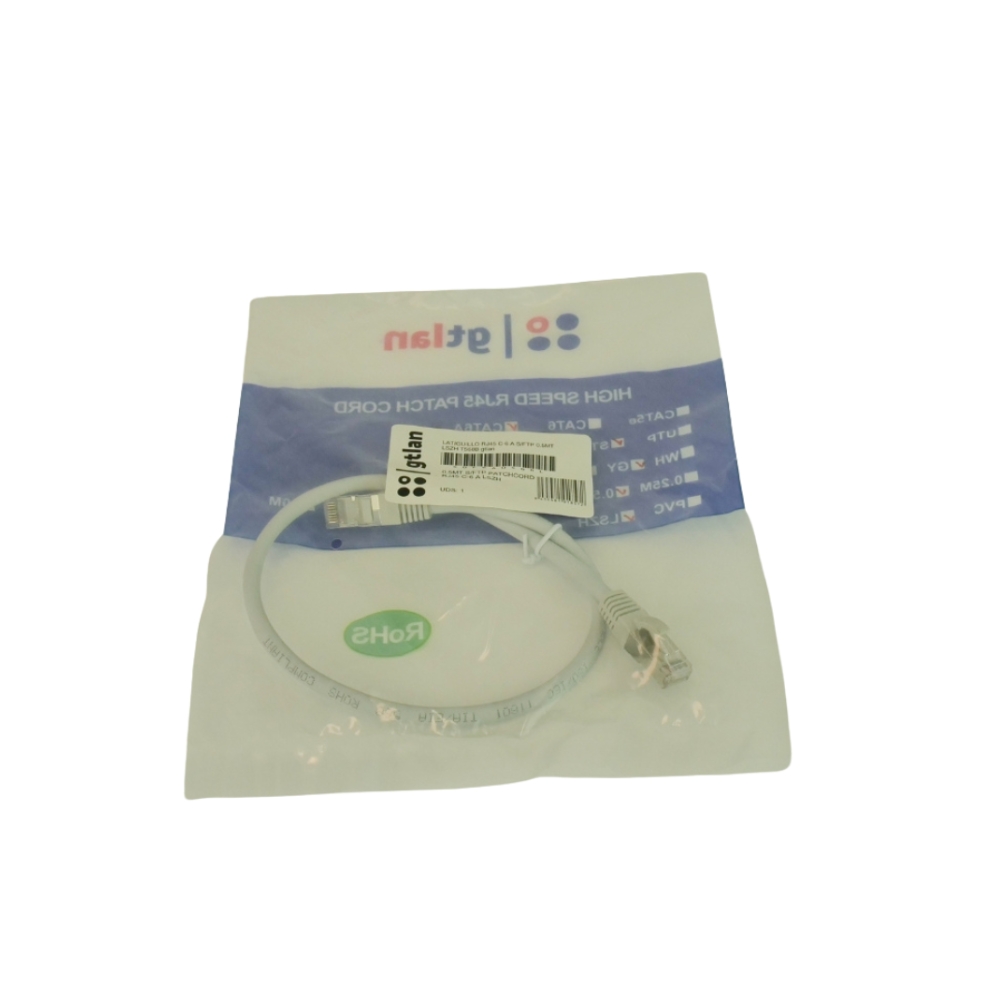

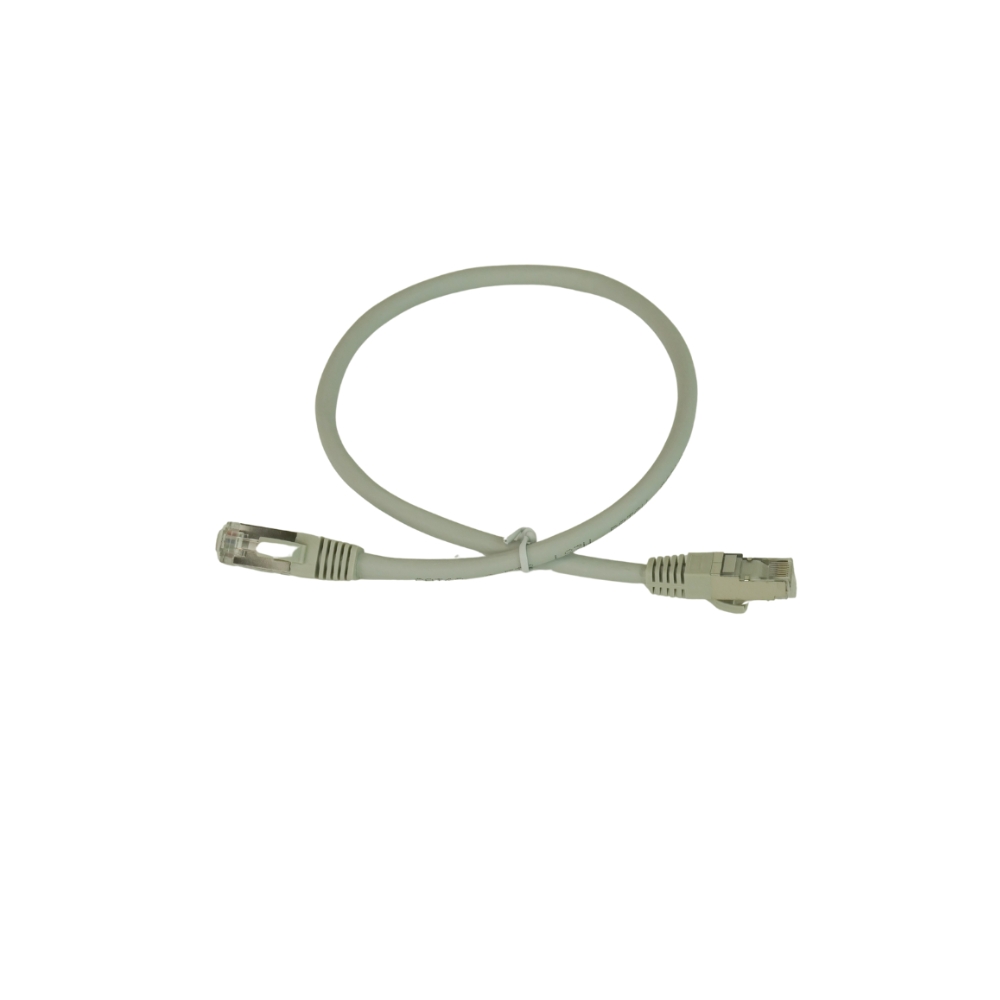

The whip RJ45 Cat. 6A S/FTP GTLAN’s 0.5 meter long cable is specially designed for connections in confined spaces in telecommunications cabinets and racks. It guarantees optimum performance for networks up to 10 Gbps, meeting the highest international standards.
This patch cord has S/FTP cable, i.e. individual shielding per pair plus overall shielding, which ensures protection against electromagnetic interference (EMI/RFI). Its LSZH (halogen-free) jacket offers increased fire safety. The RJ45 connector includes an injected cap with flange protector, ideal for intensive use.
Outstanding technical characteristics:
-
Category: 6A (up to 10 Gbps)
-
Length: 0.5 meters
-
Cable type: S/FTP (shielded per pair + overall shield)
-
Gauge: AWG 26
-
Outside diameter: 6.3 mm
-
Connector type: RJ45
-
Connector material: Nickel + phosphor bronze
-
Coating contacts: Gold 50 µ
-
Cover color: Gray RAL 7035
-
Cap: Injected with flange protector
-
Durability: Up to 750 connections
-
Casing: LSZH
-
Certifications: CE and RoHS
-
Standards: ANSI/TIA/EIA 568.2-E, ISO/IEC 11801-1 Class Ea, IEC 60603-7-1, UL94-V2, IEC 60332-1-2
Ideal applications:
-
Patch panels and switches in communication cabinets
-
Server racks
-
High performance LAN installations
-
Technical spaces with length limitation
This GTLAN patch cord ensures efficient, reliable and secure high-speed connections with maximum space utilization.
