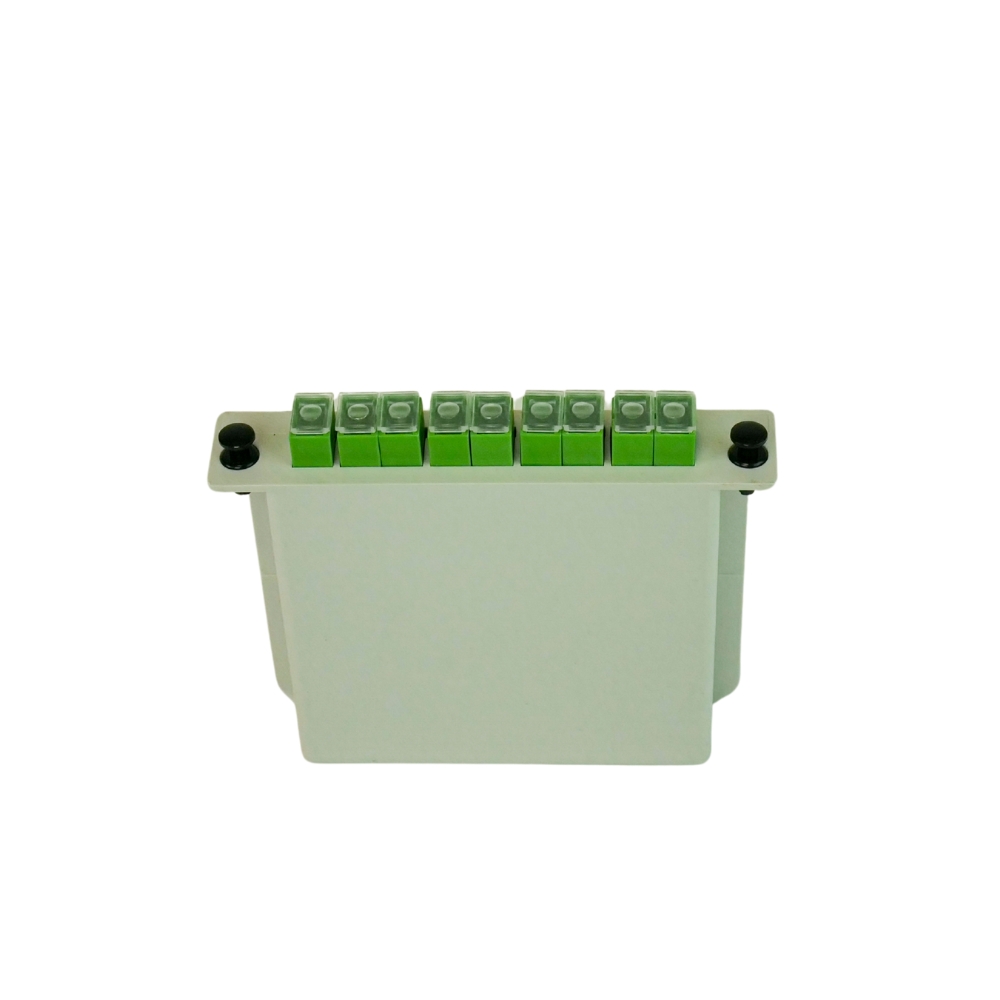

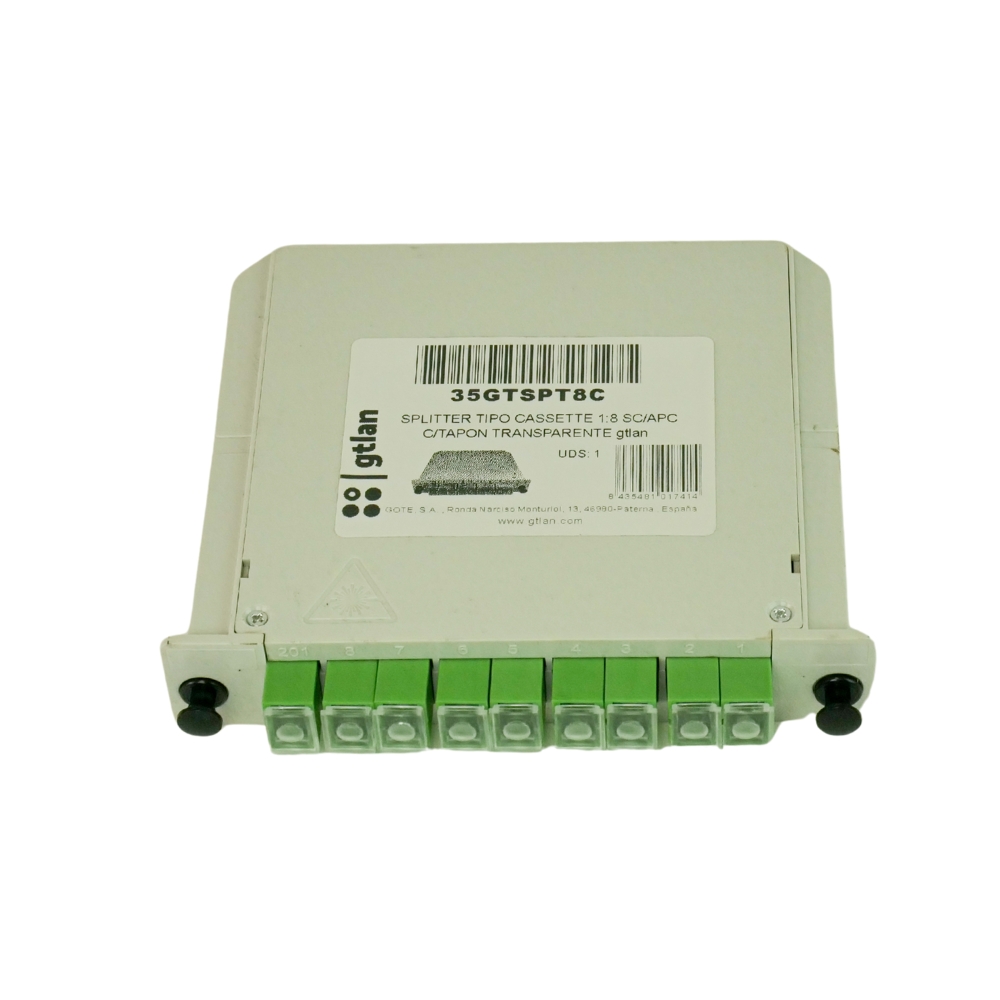

GTLAN’ s 1×8 cassette splitter with SC-APC connectors is a compact, efficient and highly reliable solution for optical distribution projects in FTTH, GPON and CATV networks. Manufactured with G.657.A2 single-mode fiber, it offers low insertion loss and excellent uniformity between channels, guaranteeing a stable and uniform signal for multiple users.
It includes transparent caps that protect the SC-APC connectors against dust and damage, ideal for installations in demanding environments such as optical terminal boxes (OTOs), ODFs and field splitters.
Outstanding technical characteristics:
-
Fiber type: Single-mode 9/125 µm G.657.A2
-
Splitter type: Cassette 1×8
-
Connectors: SC-APC
-
Insertion loss: <10.5 dB
-
Polarity loss: <0.3 dB
-
Uniformity loss: <1.0 dB
-
Standards: IEC 60793-1-47
-
Certifications: CE and RoHS
-
Applications: FTTH, GPON, CATV, optical signal distribution.
-
Protection: Transparent caps included
Ideal applications:
-
FTTH optical distribution network
-
Splitters in CTOs or junction boxes
-
GPON / EPON Projects
-
Cable television (CATV)
This GTLAN splitter is the ideal choice for operators and technicians looking for optical performance, ease of installation and connector protection in an efficient and secure cassette format.
