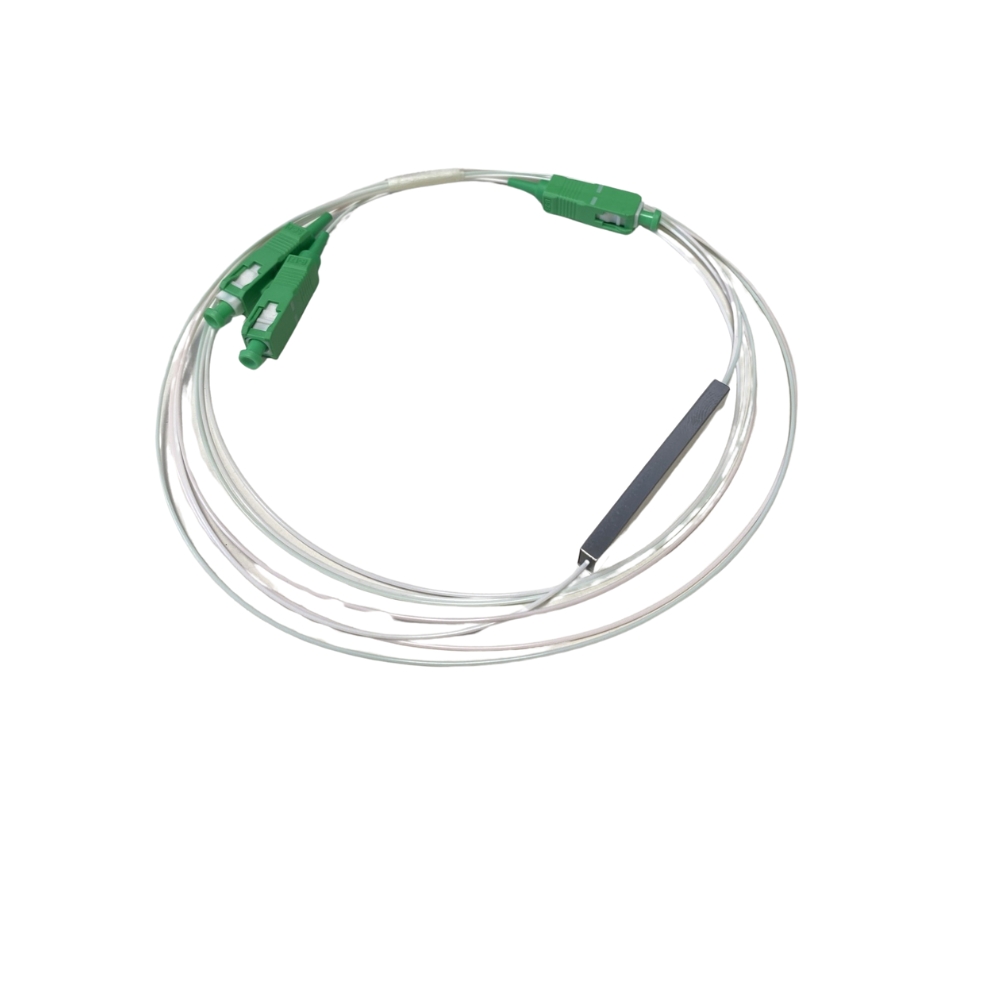

GTLAN ‘s 1×2 optical cassette splitter with Steel Tube encapsulation is the ideal solution for FTTH, GPON and CATV optical distribution networks, allowing to split the optical signal with minimum insertion loss and excellent uniformity between channels.
With pre-installed SC-APC connectors and a cable length of 1 meter, this splitter is easy to integrate into distribution boxes and ODFs. Its compact packaging (60x7x4 mm) makes it perfect for high-density installations. Manufactured with G.657.A2 single-mode fiber and LSZH jacket, it guarantees thermal stability, high reliability and safety in demanding professional environments.
Outstanding technical characteristics:
-
Fiber type: Single-mode 9/125 µm G.657.A2
-
Splitter type: 1×2 on cassette
-
Connectors: SC-APC
-
Cable length: 1 meter
-
Enclosure: 60 x 7 x 4 mm (Steel Tube)
-
Insertion loss: <4.2 dB
-
Polarity loss: <0.2 dB
-
Uniformity loss: <0.6 dB
-
Wave range: 1260 – 1650 nm
-
Working temperature: -40 °C to 85 °C
-
Casing: LSZH
-
Certifications: CE and RoHS
-
Standard: IEC 60793-1-47
Ideal applications:
-
FTTH Networks
-
GPON / EPON systems
-
Cable television (CATV)
-
Passive optical distribution (ODN)
This GTLAN optical splitter is synonymous with reliable performance, ease of installation and compliance with the most stringent standards in the telecommunications industry.
