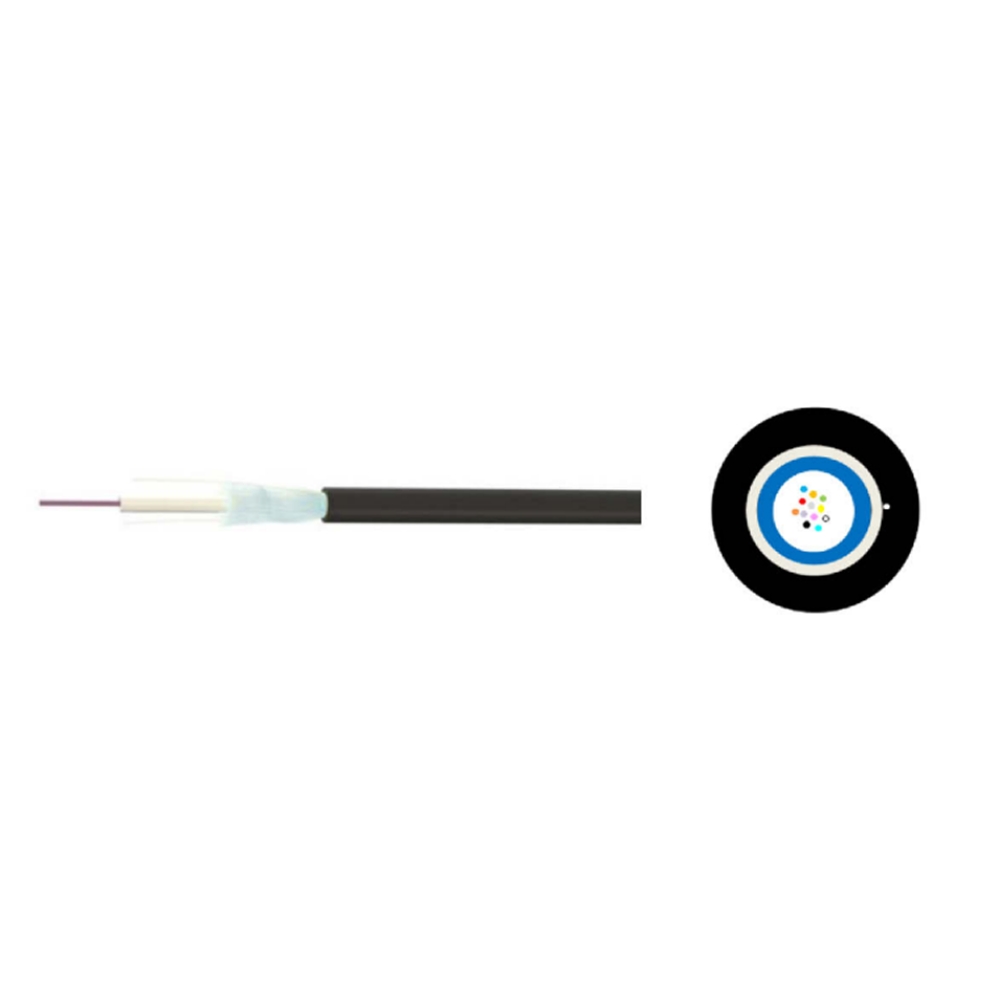

Fiber optic cables 12FO 0M4 monotube Outdoor Anti-roedor Metallic

12FO OM4 monotube outdoor fiber optic cable with anti-rodent protection and UV jacket. High speed and resistance for medium and long distance professional networks.

⇩ Technical Data Sheet

The 12FO OM4 outdoor monotube fiber optic cable with metal rodent protection is the ideal solution for demanding network deployments in outdoor environments. Equipped with 12 OM4 (50/125) optical fibers, this cable offers optimal performance for high-speed data transmission, ensuring low attenuation and high capacity in medium and long distance networks.

Its robust design includes a central tube with thixotropic gel, internal reinforcement with fiberglass yarns and a corrugated steel tape that acts as a rodent barrier. The black polyethylene outer jacket is UV resistant, ensuring durability in adverse weather conditions.

Certified under UNE-EN 60794-1-2, CE and RoHS standards, this 8.8 mm diameter, 66 kg/km OM4 cable is ideal for integrators, operators and data centers looking for reliability, security and performance in their telecommunications infrastructures. Available in 2000 meter reels.

EAN Code

8435481016530

Fabricante

Gtlan Telecommunications Solutions

Uso

Interior/exterior

Nº de FO

1 tube x 12 fibers (12 fibers)

Tipo de fibra

Multimode 50/125 μm OM4

Material cubierta exterior

LSZH

Margen Tª trabajo

-20 to 70 ºC

Nominal cable diameter

8.8 mm

Construction

– Central tube with thixotropic gel
– Reinforcement with fiberglass yarns
– Longitudinal corrugated steel tape with copolymer coating
– UV resistant black polyethylene outer cover

Código colores fibras

Red, Green, Blue, Yellow, White, Gray, Brown, Violet, Aqua, Black, Orange, Pink, Orange, Pink

Maximum installation voltage

3000 N

Maximum operating voltage

1000 N

Impact

5 J (UNE-EN 60794-1-2, Method E4)

Minimum curvature

15x cable diameter

Resistencia al aplastamiento

1500 N / 100 mm

Water penetration

<= 3 meters in 24 hours

Operating temperature

-20 degrees C to +70 degrees

Applicable regulations

UNE-EN 60794-1-2 (E1, E3, E4, F1, F5C), CE, RoHS

Embalaje

2000 m coil

Nominal weight

66 kg/km

Observaciones

Metal anti-rodent
