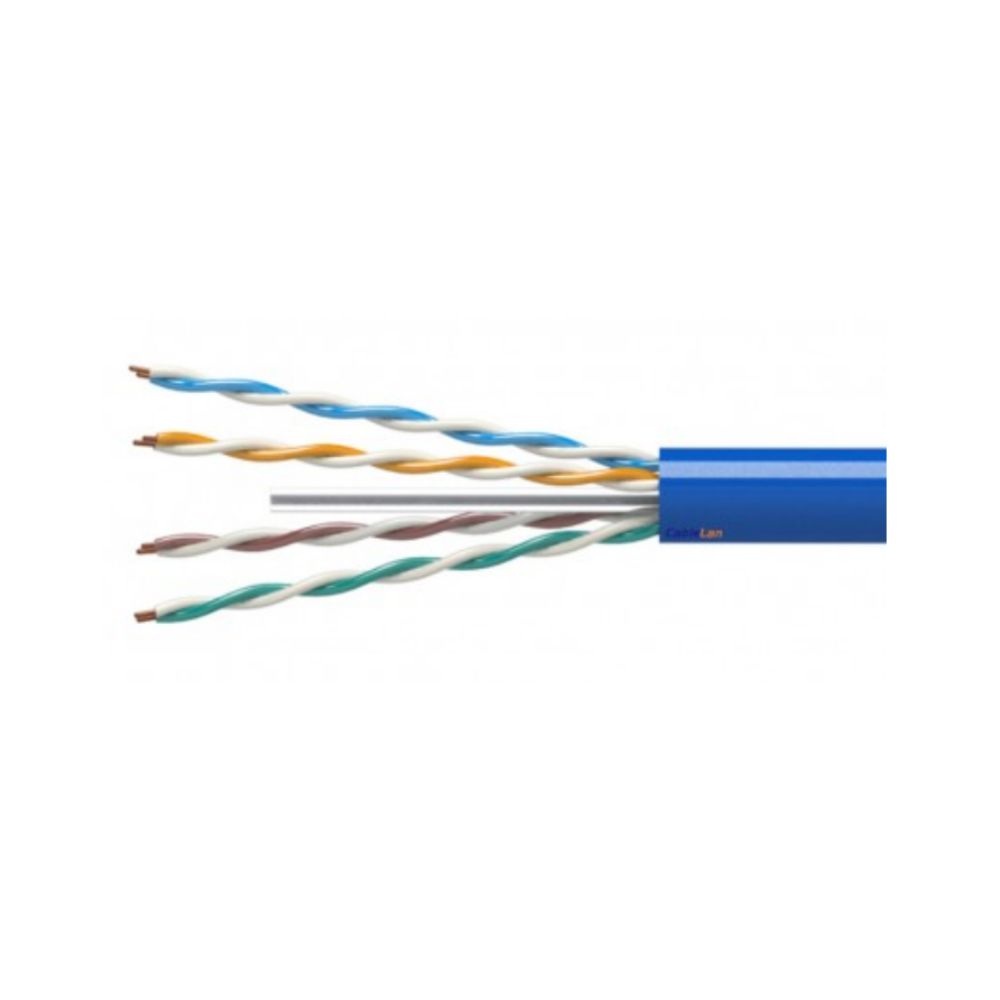

Rigid inner cable C-6A U /UTP, LSZH, B2ca-s1a,d1,a1, box 305 m

Rigid indoor cable category 6A U/UTP LSZH of 305 m, GTLAN reference 50NU6AB2CA. Ideal for indoor network installations, without screen (UTP), complies with CPR B2ca-s1a,d1,a1, maximum frequency 500 MHz and copper conductor AWG23 Ø 0.56 mm. High performance for demanding network environments.
⇩ Technical Data Sheet

Rigid Cat 6A U/UTP indoor cable with LSZH jacket and CPR B2ca-s1a,d1,a1 classification. Designed for high performance professional installations in offices, corporate buildings and data centers. Length 305 m in box.

Outstanding features:

  • Category 6A U/UTP (up to 500 MHz)

  • Copper conductor AWG23 Ø 0.56 mm

  • HDPE insulation with internal separator

  • LSZH cover for increased safety indoors

  • CPR certification: B2ca-s1a,d1,a1

  • External diameter 7.1 mm

  • Blue color

Recommended applications:

  • High traffic enterprise networks

  • Horizontal backbone

  • IP Telephony / IP CCTV

  • Data centers

Why choose GTLAN 50NU6AB2CA:

  • higher transmission reliability

  • better fire safety

  • 10 GbE-ready cabling

The GTLAN 50NU6AB2CA Cat 6A cable ensures a stable, future-proof infrastructure with maximum quality, regulatory compliance and professional performance.

EAN Code

8435481002359

Fabricante

Gtlan Telecommunications Solutions

Uso

Interior

Margen Tª trabajo

-20 to 60º C

Embalaje

Box 305 m

RoHs

YES

Categoría

C-6A

Pantalla

Not screened to the assembly / Not screened to the pair

Conductor

56 mm, AWG23 Ø 0

Material aislamiento

HDPE

NVP

Equal to 77%.

Ø ext. aislamiento conductor

02 mm, Ø 1

Material cubierta exterior

LSZH

Grosor cubierta

0, 70mm

Ø externo

1mm, 7

Color cubierta

Blue

Código colores pares

TIA/EIA T568A-T568B

Máxima frecuencia

500 Mhz

Normativa CPR

a1, B2ca-s1a, d1

Tipo de cable

Rigid interior

Apantallado

No (UTP)

Cobre

1

Longitud

305 m

Peso sin embalaje

1 kg, 14

Especificaciones

Formed by 4 twisted pairs with plastic cross spacer, in the following colors: Blue: White/Blue Orange: White/Orange Green: White/Green Brown: White/Brown

Estándares

a1), ANSI/TIA/EIA 568.2 Rev. E (Cat.6a), d2, EN 50399, EN 50575 (CPR Dca-s2, IEC 60332-1-2, IEC 60754-2, IEC 61156-5, IEEE/ISO/IEC 8802-3 (100W), ISO/IEC 11801-1 (Class Ea), UL1666, UL444, YD/T 1019
